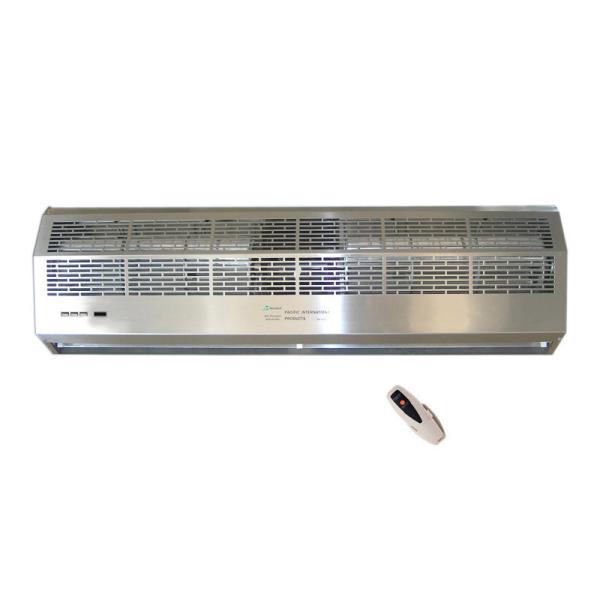

Titan 1 Series Stainless Steel Air Curtain 2000m³/h 230VAC
Premium Products
Titan 1 Series Stainless Steel Air Curtain 2000m³/h 230VAC
1
2
3
4
5
6
Place of Origin :Guangdong, China
Brand Name :Theodoor
MOQ :10
Price :$99
Operating voltage :230 VAC
Mounting type :Wall / Window Mount
Airflow :2000m³/h
Weight :15 KG
Fan type :Cross flow type
Unit length :600 to 2000 mm
Color :Stainless steel
Fan speed :2 speed
Motor power :140-350 W
Air volume :840-3600 m3/h
Air speed :9-13 m/s
Noise level :54-71 dB
Dimensions :600-2000x180-260x215-260 mm
Frequency :50Hz
Continuous operation :5000 hours
Contact Now
Product Description
Entryway 72 Inch Residential Air Curtain / Door Air Cutter With Steel Cover
Specifications:
Model
Size
(mm)
Volt./ Freq.
Motor
power(W)
Air volume
(m3/h)
Air speed
(m/s)
Noise
(dB)
N.W(kg)
Hi
Lo
Hi
Lo
Hi
Lo
FM-1206SA1
600x180x215
220v~
50Hz
140
90
840
680
9-11
55
54
8.5
FM-1209SA1
900x180x215
160
110
1400
1100
57
55
10.5
FM-1210SA1
1000x180x215
180
130
1600
1300
58
56
11.5
FM-1212SA1
1200x180x215
200
150
1900
1600
58
56
13.5
FM-1215SA1
1500x180x215
230
180
2500
2000
59
57
15
FM-1218SA1
1800x180x215
300
250
3200
2600
60
58
20
FM-1220SA1
2000x180x215
350
300
3600
2900
61
59
22
FM-1509SA1
900x220x260
220v~
50Hz
230
180
2000
1600
10-13
67
65
15
FM-1512SA1
1200x220x260
350
300
2800
2200
69
67
19
FM-1515SA1
1200x220x260
430
380
3600
2800
71
69
23
Feature
1. Compact design with stainless steel cover, easy installation and simple maintenance.
2. The optimized fan wheel provides stable & even air flow. It has large air volume and low noise
performance.
3. The reliable designed motor, with overheating protector and has safety operation of 5000 hours
continuously without defect.
4. Adopting remote control or touch switch, it’s able to adjust high and low air velocity.
5. Two series available in different air velocity: 9-11m/s, 10-13m/s; Suitable for application in cafeteria,
bakery, waiting room, restaurants, retail shop, department store, sports center and so on.
What is Air Curtain?
Theodoor Air curtain is installed above the entryway of store, restaurant, hotel...etc. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Especially used in the location with air conditioner to keep indoor environment and save energy of refrigeration equipment. In addition, Air Curtain can prevent the invasion of dust, pest and harmful fumes from outside. In this way, a comfortable indoor climate is maintained.
Packaging & Shipping
Our Services
OEM, ODM
Label, box design
Shipping arrangement
After sales spare parts support
Company Information
FAQ
What's the main functions of Air Curtain?
1. Dust-proof, insect prevention
2. Isolate the smell
3. Energy saving
4. Comfortable heating
How to select suitable air curtain?
There are many factors that we have to consider when selecting an air curtain, some of which are listed below:
